Introduction
Allflow Systems Provides a new and innovative support service for Contractors in the Reticulation Industry. Allflow offers live tapping of pressure and non-pressure pipelines for Industrial and Commercial purposes, including water, fire, gas and sewer mains, eliminating costly interruptions to supply.

Pipe Materials, Sizes and Types
Any rigid or semi rigid material of any diameter can be tapped, including: MSCL, DICL,CICL, UPVC, PE, HOBAS, FRC, RC, VC, Concrete, Copper, Earthernware, Cast Iron, Ecopur, Ducpor, and others, Flanged offtakes range from DN80mm (3") to DN450mm (18") on pipe sizes DN80mm (3") to DN2000mm (78"). BSP Oftakes from 20m (3/4") to DN 65mm (2 1/2") on pipes sizes DN 65mm (2 1/2") to DN2000 (78")

Benefits
• Eliminates cut-ins
• Maintains pipeline integrity
• No disruption of supply to consumers

• Eliminates potential back flow and contamination
• No loss of fire protection
• No drainage required
• No water loss
• Immediate connection – no after hours shutdowns
• No discoloration of water supply or re-chlorination required

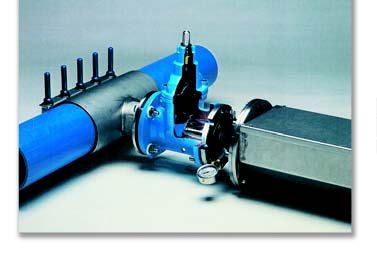

Flanged Offtakes
Allflow offers three (3) options for drilling:
• 316S/S Flanged Offtake to AS 4181.
• 316S/S BSP Offtake to AS 4181.
• MSCL Flanged Offtake and Compensation Plate if required.

Approved Technology
Allflow has adopted international under pressure tapping technology, which has been used extensively throughout the world. CTS Australia is an approved provider for tapping services to the following water authorities:
• Sydney Water
• Gold Coast City Council
• SA Water
• Hunter Water Corporation
• Western Australia Water Authorities
• Yarra Valley Water
• South East Water
• City West Water
